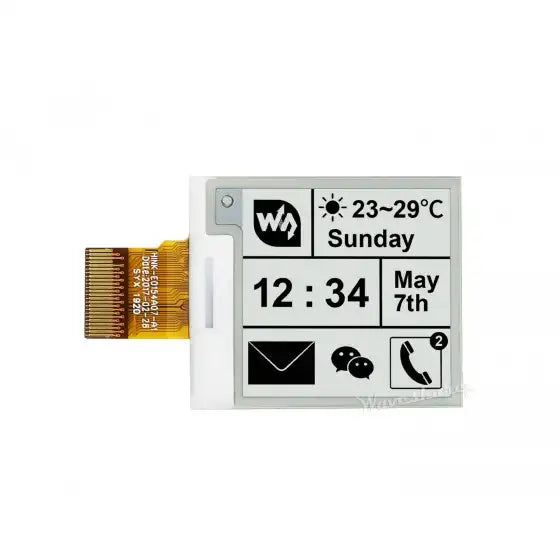

200×200, 1.54inch E-Ink raw display panel
200×200, 1.54inch E-Ink raw display panel

Note: The actual images, color, and appearance of the items may differ slightly from the photographs.
SKU: WS-12561
(0)

200×200, 1.54-inch E-Ink raw display panel

Waveshare
Out of stock
Lek 7.72

Express shipping

Dedicated support

Returns within 14 days

Description

Overview
This is an E-Ink raw display, 1.54inch, 200×200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 31.8mm × 37.32mm × 1.05mm
Display size: 27.6mm × 27.6mm
Dot pitch: 0.138 × 0.138
Resolution: 200 × 200
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW Viewing angle: >170°
