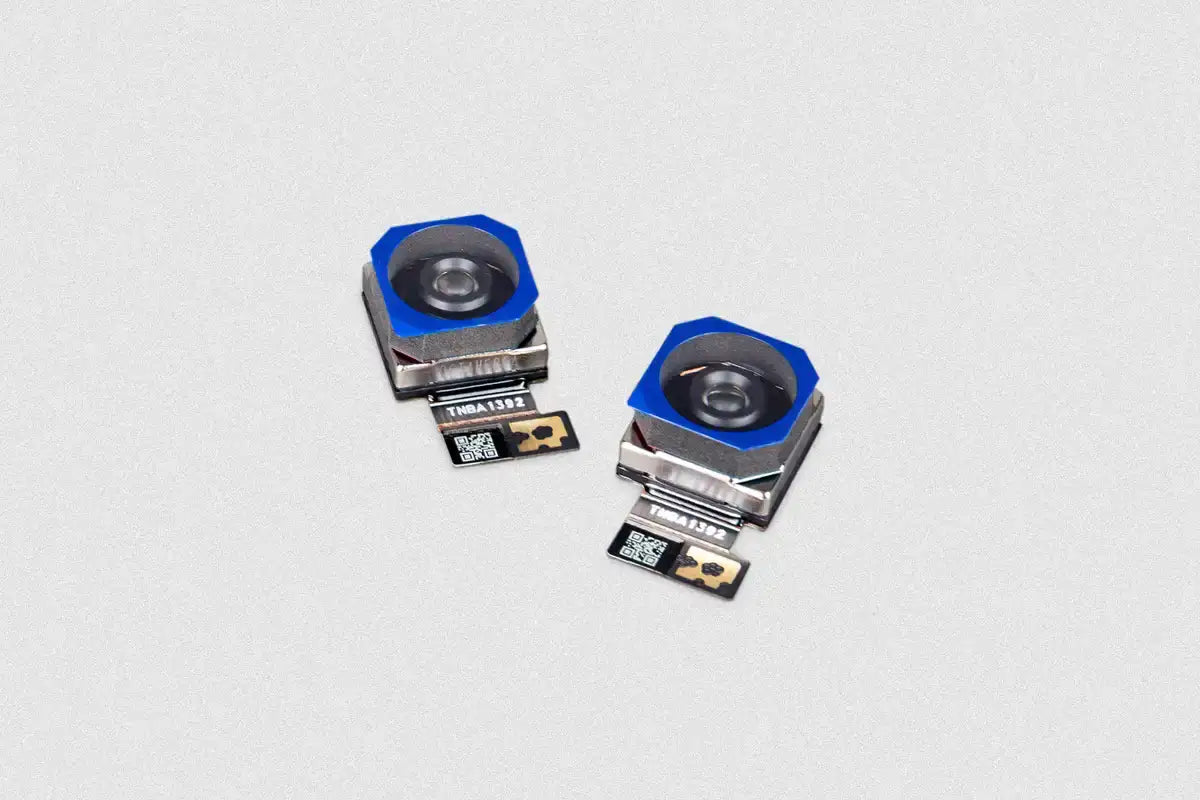

Raspberry Pi Camera Module 3 Sensor – NoIR Standard AF

The Raspberry Pi Camera Module 3 Sensor Assembly contains the same sensor and autofocus functionalities as Raspberry Pi Camera Module 3 AF (autofocus), enabling you to integrate the features of Camera Module 3 into a more diverse range of form factors. This assembly provides a low-cost way to add imaging capability to smaller devices, reducing manufacturing complexity and time to market.

Specifications

Sony IMX708 sensor

Resolution: 11.9 megapixels

Sensor size: 7.4mm sensor diagonal

Pixel size: 1.4μm × 1.4μm

Horizontal/vertical: 4608 × 2592 pixels

Integrated IR cut filter in standard variants; not present in NoIR variants

Phase Detection Autofocus

Operating temperature: 0°C to 50°C

On-board EEPROM for storing camera data

Documents

• Raspberry Pi Camera Module 3 Sensor Assembly product brief
• Raspberry Pi Camera Module 3 reference schematic
