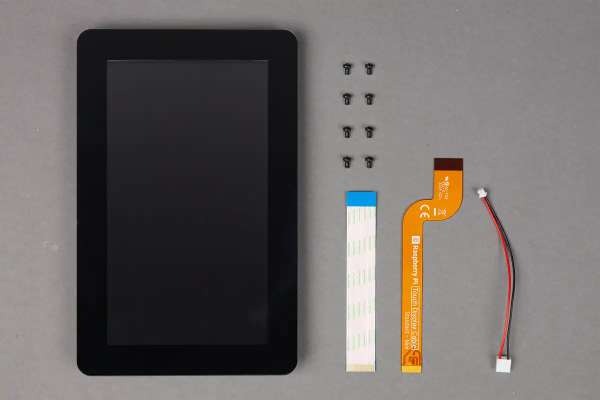

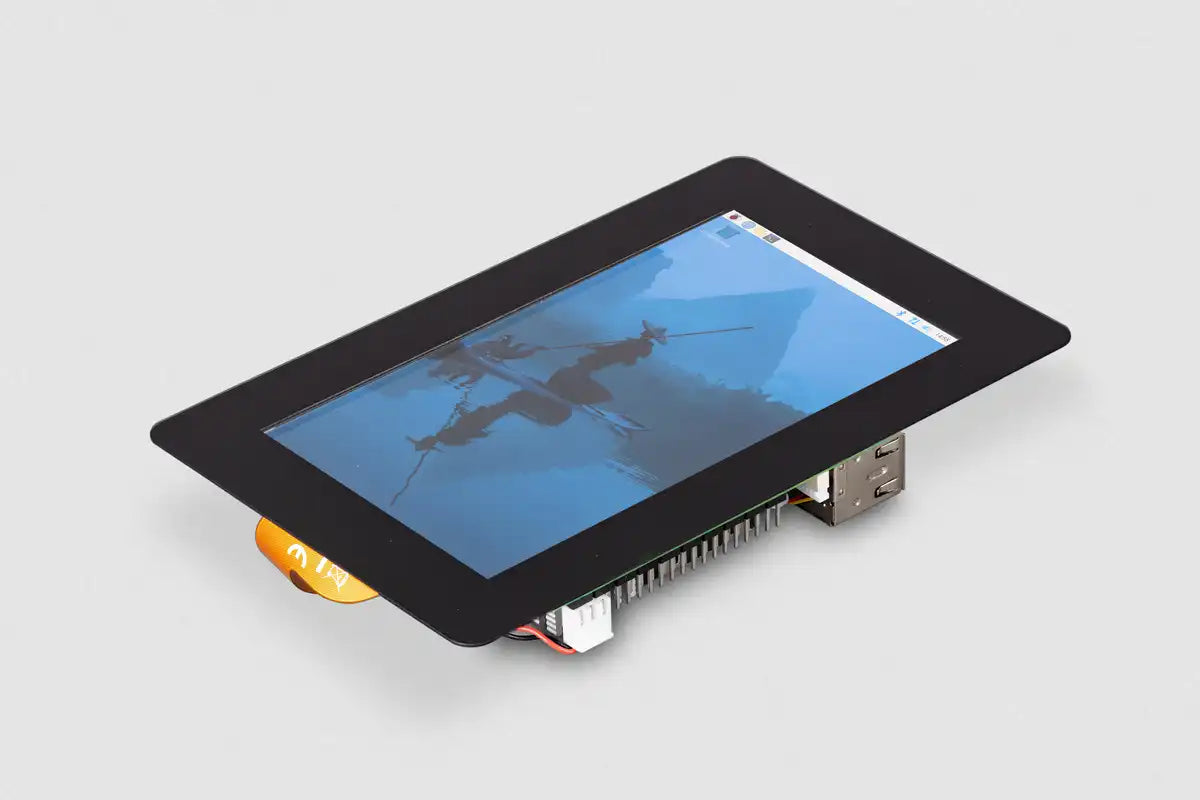

Raspberry Pi Touch Display 2 (5-inch)
Raspberry Pi Touch Display 2 (5-inch)
Raspberry Pi Touch Display 2 (5-inch)
Raspberry Pi Touch Display 2 (5-inch)
Raspberry Pi Touch Display 2 (5-inch)
Raspberry Pi Touch Display 2 (5-inch)

Note: The actual images, color, and appearance of the items may differ slightly from the photographs.
SKU: RPI-DIS-2-5
(0)

Raspberry Pi Touch Display 2 (5-inch)

Raspberry Pi
Out of stock
Lek 42.94

Express shipping

Dedicated support

Returns within 14 days

Overview

Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

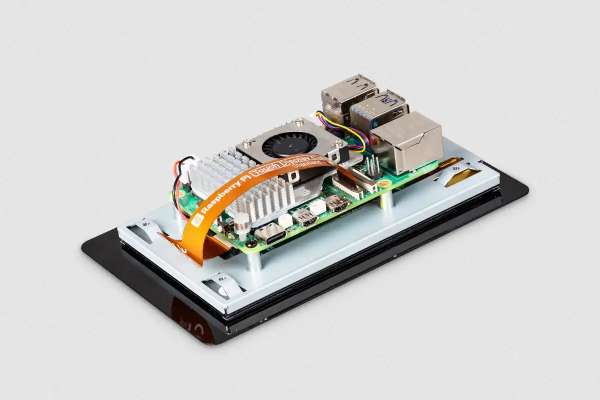

Only two connections are required to connect the 720 × 1280 display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line.

Specifications

  • 24-bit RGB, 720 × 1280 pixels display format
  • True multi-touch capacitive touch panel, supporting five-finger touch
  • Active area: 5-inch display: 110.4 mm × 62.1 mm
  • Liquid Crystal Display Thin-Film Transistor (LCD TFT)
  • Normally black, transmissive
  • Anti-glare surface

Documents

  • Raspberry Pi Touch Display 2 product brief
  • Raspberry Pi Touch Display 2 install guide

Compliance

Raspberry Pi Touch Display 2 has undergone extensive compliance testing and meets a number of regional and international standards. View and download relevant certificates and conformity documents.

Obsolescence Statement
Raspberry Pi Touch Display 2 will remain in production until at least January 2030
