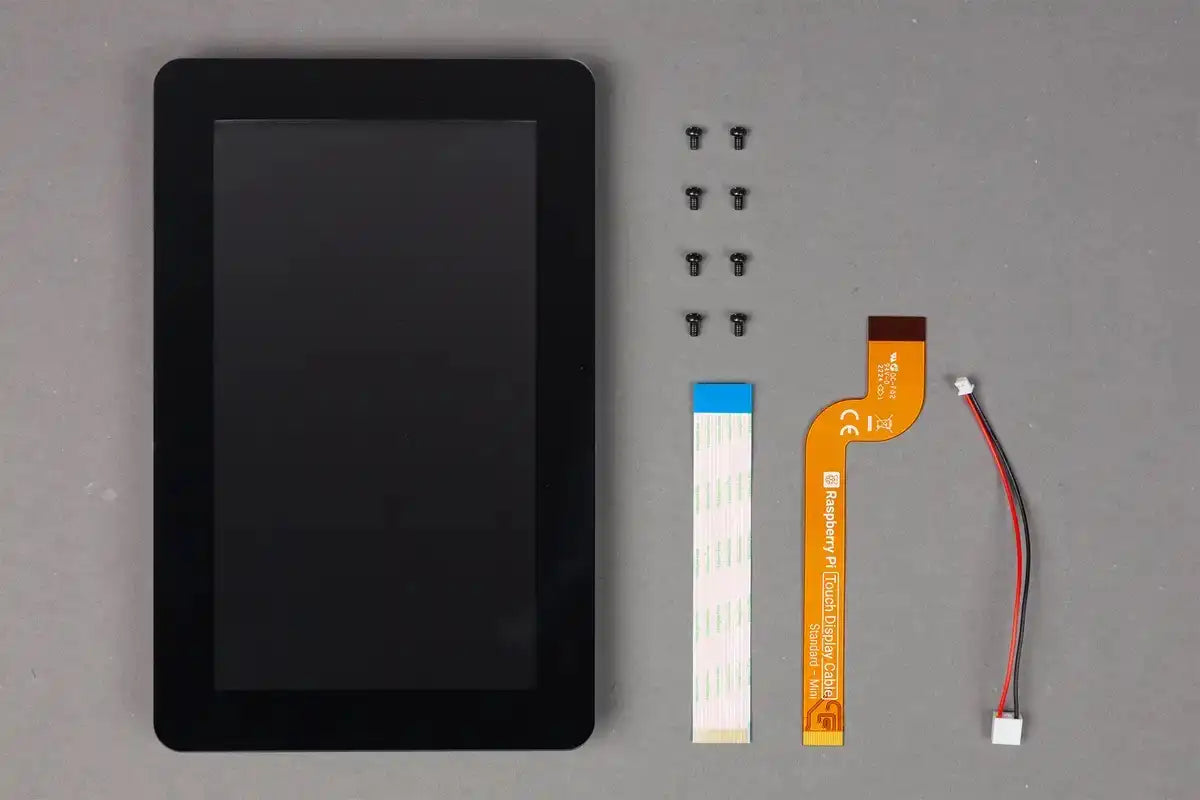

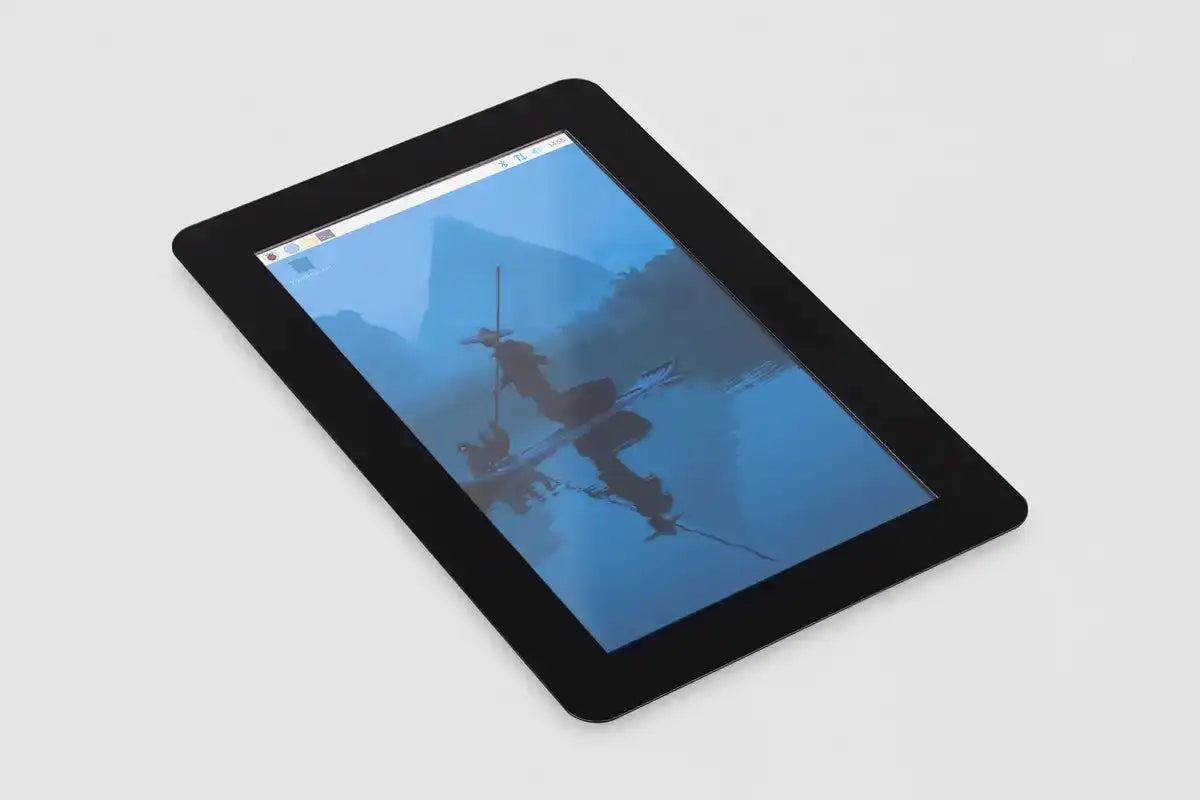

Raspberry Pi Touch Display 2 (7-inch)

Raspberry Pi Touch Display 2 is a 7′′ touchscreen display for Raspberry Pi. It is ideal for interactive projects such as tablets, entertainment systems, and information dashboards

Overview

Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

Only two connections are required to connect the 720 × 1280 display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line.

Specifications

720 (RGB) × 1280 pixels display format

88mm × 155mm active area

TFT, normally white, transmissive LCD type

True multi-touch capacitive touch panel, supporting five-finger touch

Anti-glare surface

Documents

• Raspberry Pi Touch Display 2 product brief
• Raspberry Pi Touch Display 2 install guide

Compliance

Raspberry Pi Touch Display 2 has undergone extensive compliance testing and meets a number of regional and international standards.

View and download relevant certificates and conformity documents.

Obsolescence Statement

Raspberry Pi Touch Display 2 will remain in production until at least January 2030
