Stackable 0.100″ Female Header with Extra 0.3″ Spacer: 2×20-Pin, Straight

Description

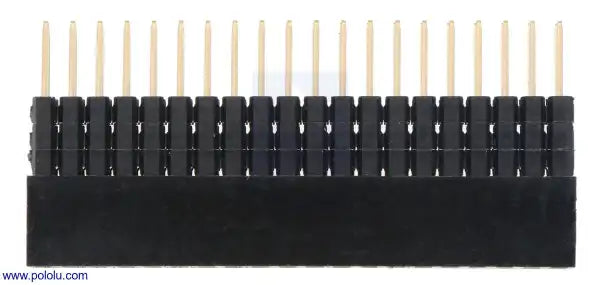

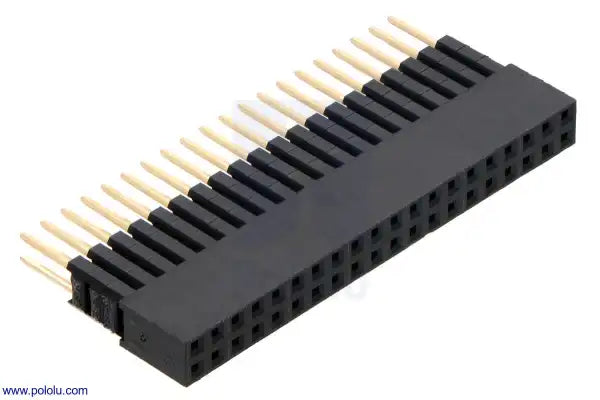

This extra-tall stackable 40-pin female header features two rows of 20 pins spaced with a 0.1″ (2.54 mm) pitch. It includes three 0.1″-thick spacers for additional clearance, and the extended pins allow multiple units to be stacked as popularized on Arduino shields. The 2×20 size is notably used on the Raspberry Pi Models A+ and B+, and the extra 0.3″ of height allows for stacked boards to clear all of the components on the Raspberry Pi B+.

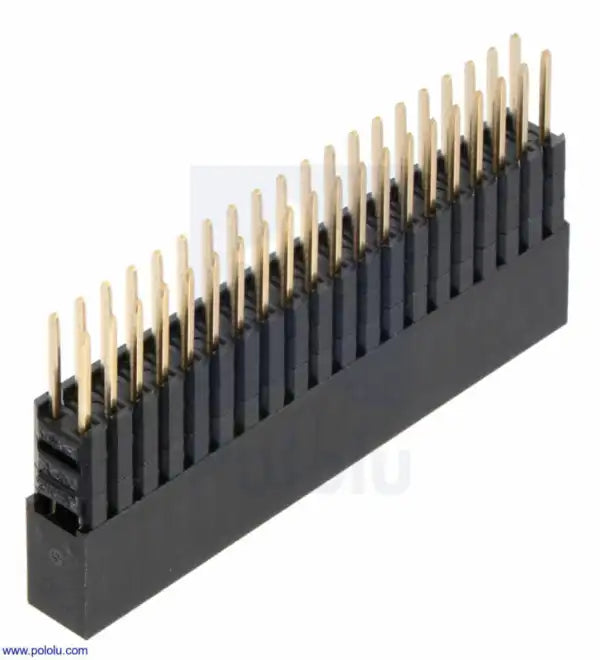

This stackable 40-pin female header features two rows of 20 pins spaced with a standard 0.1″ (2.54 mm) pitch; this spacing is the same as on most solderless breadboards and matches 0.1″ male header strips. The extended pins allow multiple units to be stacked as popularized on Arduino shields, enabling removable daughter boards that can access pins without blocking them. The 2×20 size is notably used on the Raspberry Pi Model A+ and Model B+ as well as the Raspberry Pi 2 Model B, Raspberry Pi 3 Model B, and Raspberry Pi 3 Model B+, and its height matches our 18.6 mm M2.5 standoffs for Raspberry Pi.

Dimensions

The dimensions in the above diagram are: A = 48.3 mm, B = 51.3 mm, H = 16.1 mm, and P = 7.1 mm.
