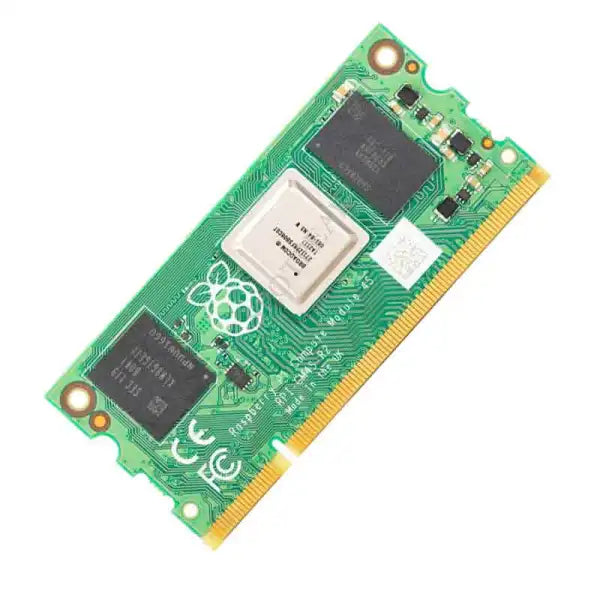

1GB RAM Compute Module 4S – Lite

Based on the Raspberry Pi 4 Model B architecture, Compute Module 4S is intended for specific industrial customers migrating from Compute Module 3 or Compute Module 3+ and is not for general sale. For new customers who are designing products, we recommend using Raspberry Pi Compute Module 4.

Specifications

Broadcom BCM2711 quad-core 64-bit Cortex-A72 (Arm v8) at 1.5GHz

1GB LPDDR4-3200 SDRAM with ECC

Options for 8GB, 16GB, or 32GB eMMC flash

Option for 0GB eMMC Flash (CM4SLite only)

1 × USB 2.0 port (high speed)

46 × GPIO signals

1 × SDIO 2.0 (CM4SLite only)

1 × HDMI 2.0 port (up to 4Kp60 supported)

1 × 2-lane MIPI DSI display interface

1 × 4-lane MIPI DSI display interface

1 × 2-lane MIPI CSI camera interface

1 × 4-lane MIPI CSI camera interface

1 × composite TV out (PAL or NTSC)

H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)

OpenGL ES 3.0 graphics
