8-ch Ethernet Relay Module, Modbus RTU/Modbus TCP Protocol, PoE port Communication, With Various Isolation And Protection Circuits

Waveshare
Disponibile
Lek 46.28

Spedizone express

Supporto dedicato

Reso entro 14gg

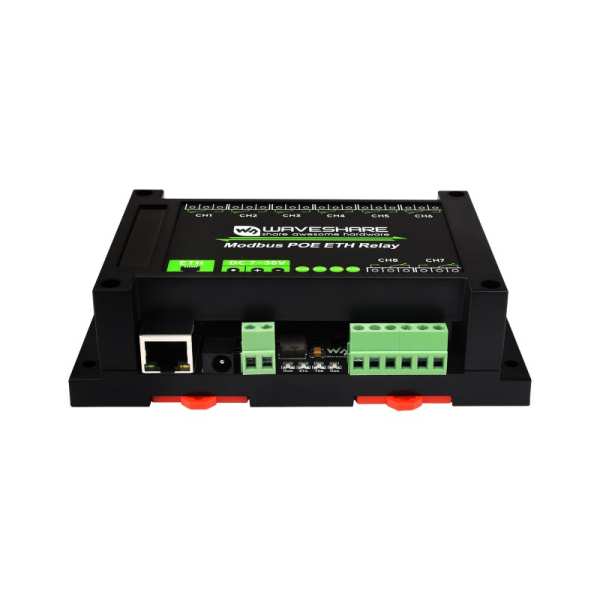

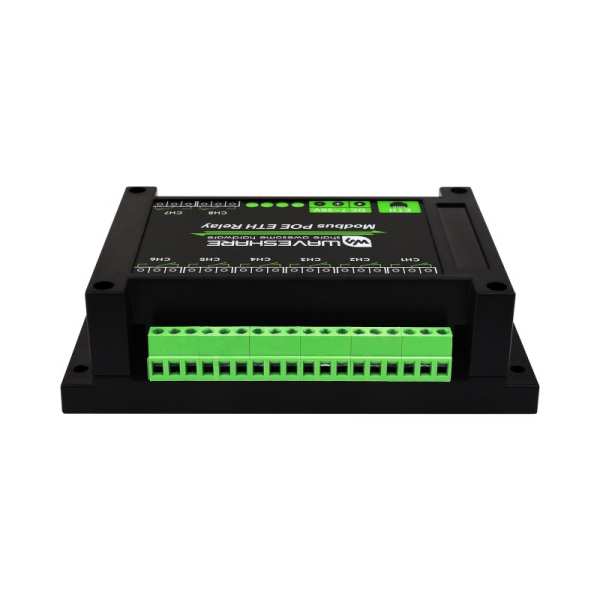

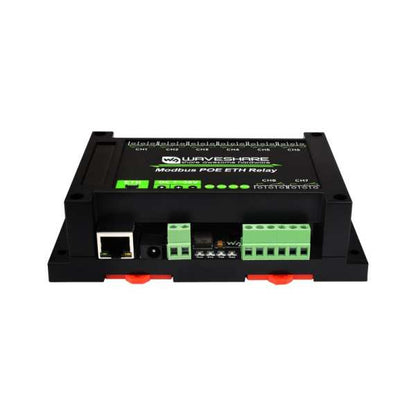

This product is an industrial 8-ch relay module controlled via Ethernet port, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.

The Modbus POE ETH Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

  • Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
  • Supports DC 7~36V wide range power input and PoE power supply
  • Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
  • Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
  • Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
  • High-quality relay, contact rating: ≤10A 250VAC/30VDC
  • Rail-mounted ABS case, easy to install, safe to use
  • 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
Specifications
Power supply PoE port, DC 5.5*2.1 power port, or Screw terminal (7~36V)
Communication interface PoE port, IEEE 802.3af compliant
Relay channels 8
Contact form 1NO 1NC
Contact rating ≤10A 250VAC/30VDC
Modbus Protocol Modbus RTU Protocol or Modbus TCP Protocol
LED indicators RUN: Ethernet port indicator, blinking in 2-second cycles when Ethernet port normally working
STA: MCU indicator, blinking when the MCU normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data
