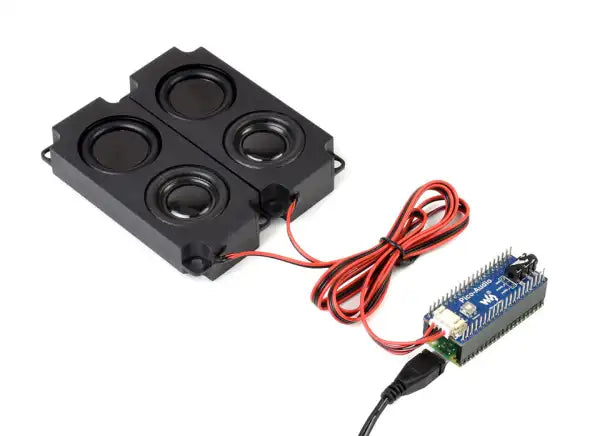

Audio Expansion Module for Raspberry Pi Pico, Concurrently Headphone / Speaker Output
Audio Expansion Module for Raspberry Pi Pico, Concurrently Headphone / Speaker Output

Nota: Le immagini, il colore e l’aspetto effettivi degli articoli potrebbero differire leggermente dalle fotografie.
SKU: WS-20167
(0)

Audio Expansion Module for Raspberry Pi Pico, Concurrently Headphone / Speaker Output

Waveshare
Esaurito
Lek 13.81

Spedizone express

Supporto dedicato

Reso entro 14gg

Audio Expansion Module For Pico

Wide Range Audio Sampling Rate, Headphone And Speaker Signal Output At The Same Time

Features At A Glance

The Pico-Audio is an audio expansion module designed for Raspberry Pi Pico, which incorporates PCM5101A low power stereo decoder, and uses I2S bus for transmitting audio signal. It supports wide range audio sampling rate, allows headphone and speaker signal output at the same time.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Standard 3.5mm audio jack, for connecting external headphone
  • Dual channels speaker headers, for direct driving speakers
  • 8~384000Hz audio sampling rate
  • Stereo sound effect output
  • Using 3-wire I2S, effectively reducing EMI
  • Comes with development resources and manual (Raspberry Pi Pico audio play code, sound card code)
Specifications
OPERATING VOLTAGE 5V LOGIC LEVEL 3.3V
AUDIO DECODER PCM5101A AUDIO BUS I2S
DAC SNR 106 dB SPEAKER DRIVING 2.6W/channel (4Ω BTL)
