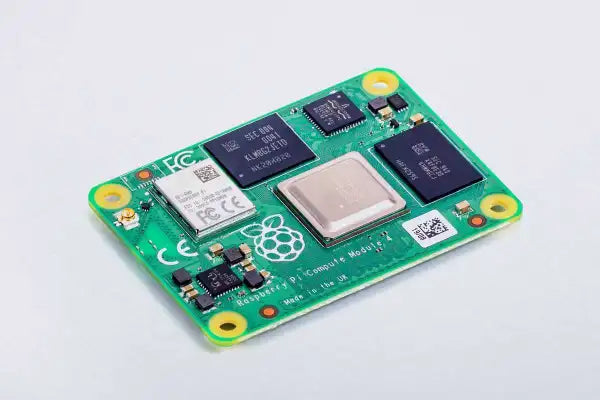

CM4101000, 1GB RAM, Lite, Raspberry Pi Compute Module 4 (wifi)

Description

1GB RAM, Lite Raspberry Pi Compute Module 4 (with wireless)

REF. CM4101000

SPECIFICATION

• Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
• OpenGL ES 3.1, Vulkan 1.0
• 1GB LPDDR4-3200 SDRAM
• 0GB (“Lite”) eMMC Flash memory
• Fully certified radio module:2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless;Bluetooth 5.0, BLE;

  On-board electronic switch to select either external or PCB trace antenna

DOCUMENTS

Raspberry Pi Compute Module 4 product brief

Raspberry Pi Compute Module 4 datasheet

Compute Module 4 STEP file

Compute Module 4 Lite (without eMMC) STEP file
