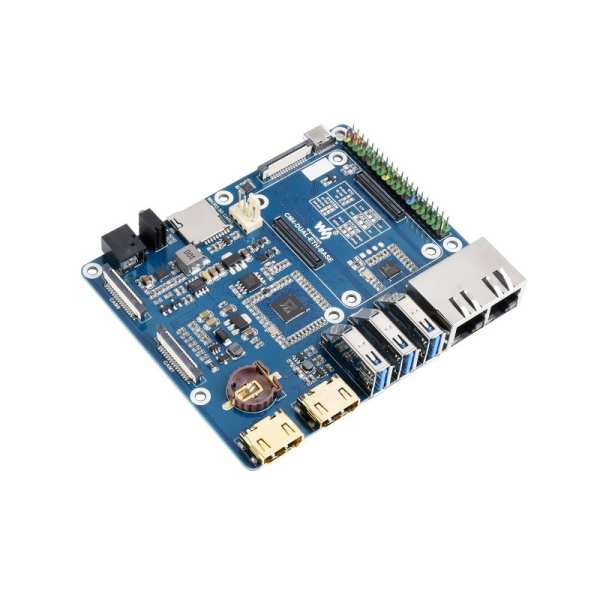

Dual ETH Mini-Computer For Raspberry Pi Compute Module 4(NOT Included), Gigabit Ethernet, 4CH Isolated RS485

Dual ETH Mini-Computer For Raspberry Pi Compute Module 4(NOT Included), Gigabit Ethernet, 4CH Isolated RS485

CM4 socket suitable for all variants of Compute Module 4;
Networking Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector;
USB 2.0 Type A × 2; Isolated RS485 × 4, Power screw terminal × 1;
Camera MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector);
Video HDMI port × 1, supports 4K 30fps output;
Real-time clock with battery socket and ability to wake Compute Module 4;
Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants;
Fan header allows speed adjustment, 5V;
Indicator Power indicator × 1, CM4 status indicator × 1;
User LED × 2, RS485 communication indicator × 8;
Power input 7-36V;
Dimensions 123 × 98 × 32mm.
