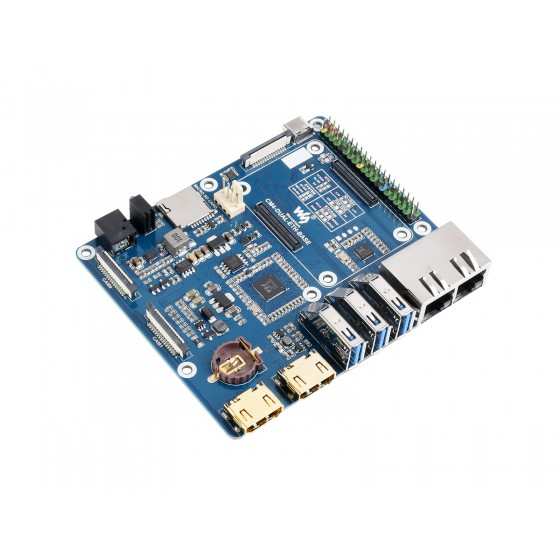

Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4
Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

Nota: Le immagini, il colore e l’aspetto effettivi degli articoli potrebbero differire leggermente dalle fotografie.
SKU: WS-19838
(0)

Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

Waveshare
Esaurito
Lek 53.30

Spedizone express

Supporto dedicato

Reso entro 14gg

Specifications
CM4 SOCKET suitable for all variants of Compute Module 4
ETHERNET Dual Gigabit Ethernet RJ45
USB USB 3.2 Gen1 × 3
PIN HEADER 40PIN GPIO header × 1
DSI DISPLAY MIPI DSI display port × 1, 15pin 1.0mm FPC connector
CSI CAMERA MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI HDMI × 2, supports 4K 30fps output
RTC Real-time clock with battery socket and ability to wake Compute Module 4
TF CARD SLOT TF card socket for Compute Module 4 Lite (without eMMC) variants
FAN 5V/12V, allows speed adjustment and measurement
POWER INPUT 7V-36V
DIMENSIONS 109.0 × 91.5mm
