The carrier board designed for the Raspberry Pi Touch Display 2 and Raspberry Pi Compute Module 5.

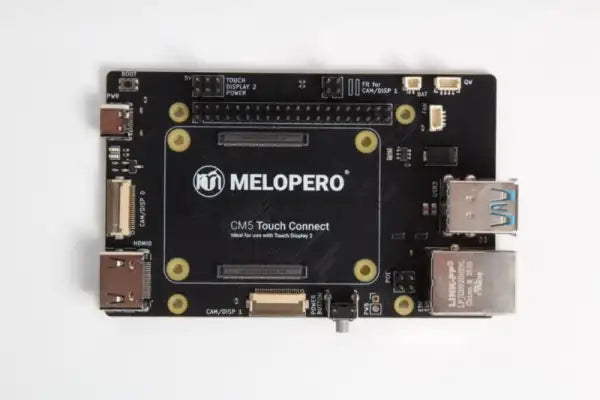

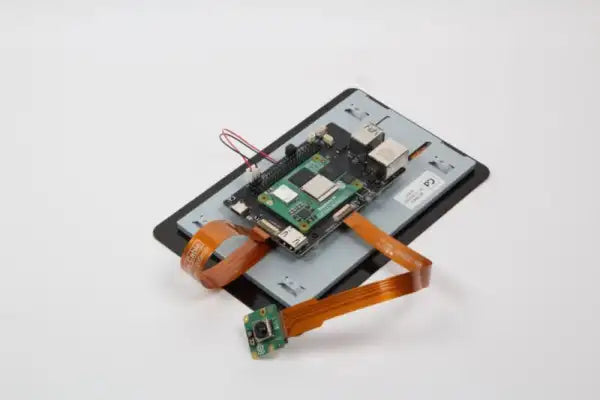

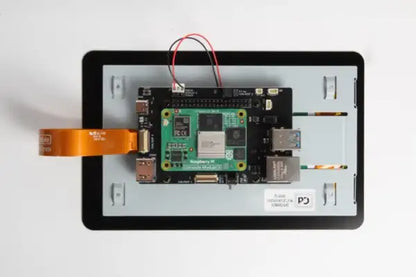

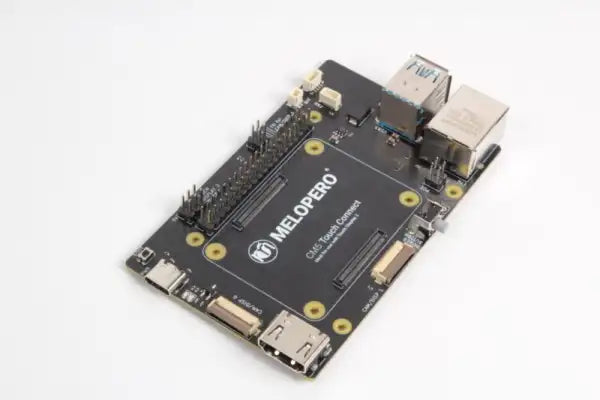

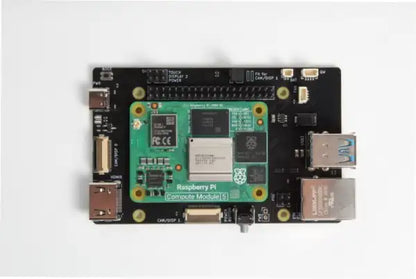

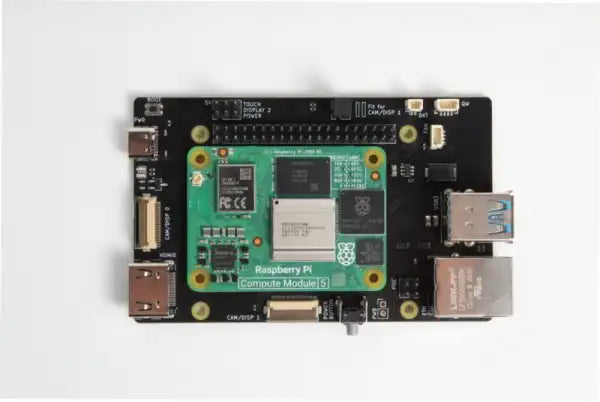

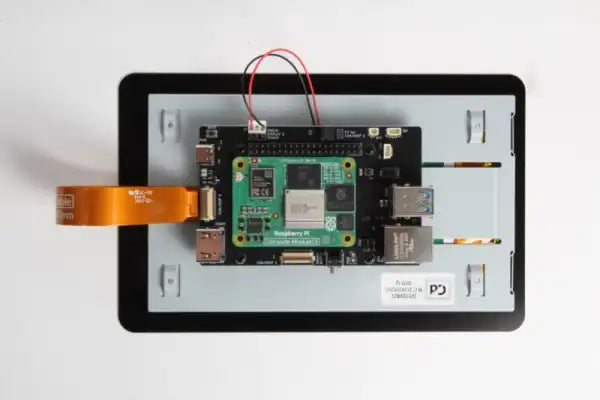

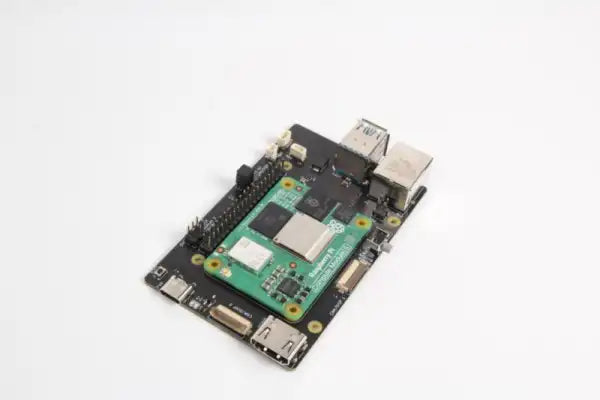

Melopero CM5 Touch Connect is a compact carrier board specifically engineered to be mounted directly behind the Raspberry Pi Touch Display 2. Combining the Compute Module 5 (CM5) with the official display into a seamless ‘All-in-One’ system, this board offers a clean, professional solution for industrial HMI, smart home hubs, and edge computing.
Power & Programming: The USB-C port serves as both the power input and the interface for CM5 EEPROM programming when used with the onboard tactile button.
RTC Battery: Fully compatible with the official Raspberry Pi RTC battery. The CM5 can be configured to recharge the battery while the system is powered.
GPIO Freedom: By using the dedicated display power header instead of the 40-pin GPIO, you ensure maximum compatibility with existing Raspberry Pi HATs.
Specifications
| Compatibility | Supports all Raspberry Pi Compute Module 5 (CM5) variants |
| Video & Touch | 1x HDMI, 2x MIPI (CSI/DSI 22-pin), Dedicated display power header |
| Networking | Gigabit Ethernet (10/100/1000) with PoE HAT support header |
| USB Ports | 2x USB 3.0 Type-A |
| Power & Programming | 1x USB-C (Power & EEPROM programming via dedicated Tactile Button) |
| Expansion | Standard 40-pin GPIO (2×20), Qwiic I2C connector |
| Management | On-Off Power Button, 4-pin FAN connector, Status LEDs (Red/Green) |
| Utility | Official RPi RTC Battery connector (supports charging if enabled via CM5) |
| Configuration | Jumper selector for I2C routing on MIPI1 |
What’s in the box
1x Melopero CM5 Touch Connect carrier board
1x 200mm Display Cable (official Raspberry Pi compatible)
2x Jumper Caps (2.54mm pitch) to enable I2C routing on the MIPI 1 connector
(Note: Raspberry Pi Compute Module 5 and Touch Display 2 are not included)
