Melopero Shake RP2040

Description

Click below to download the getting started guide:

GETTING STARTED GUIDE

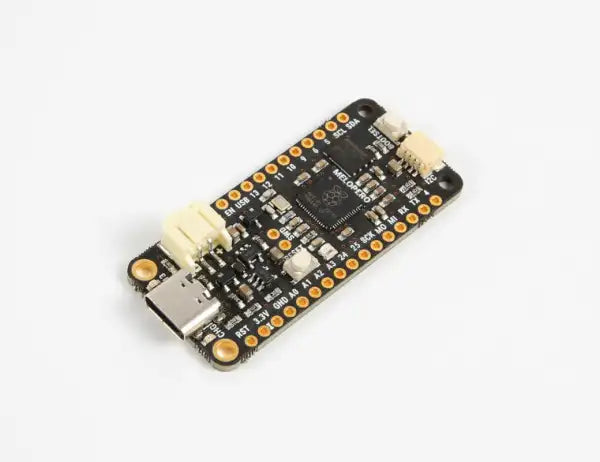

The Melopero Shake RP2040 is a powerful development board based on the Raspberry Pi RP2040 microcontroller, programmable in C/C++, MicroPython, CircuitPython and Arduino.

The board features:

• 16Mbytes of FLASH Memory
• 3.7-4.2 LiPo battery charger (200mA charge curret)
• Battery monitor (it sends an alert when the battery voltage drops at 3.4V)
• Reset and boot buttons (no need to detach/attach the board to enter boot mode)
• Qwiic/Stemma QT connector for attaching lots of Melopero, Adafruit and SparkFun sensors
• Classic Feather pinout for maximum compatibility
• USB-C connector for powering, programming and charging
• JST 2-pin connector for attaching the battery (we follow the Adafruit and SparkFun batteries polarity)
• Green user LED on pin 13
• RGB WS2812 LED (aka NeoPixel)
• Orange LED for signaling the charging status
• SWD header for debugging
• 4 mounting holes
• Programmable in C/C++, MicroPython, CircuitPython and Arduino

Dimensions: 2.0” x 0.9” x 0.28” (50.8mm x 22.8mm x 7.05/max height ) .
