Nota: Le immagini, il colore e l’aspetto effettivi degli articoli potrebbero differire leggermente dalle fotografie.
SKU: WS-30581
(0)

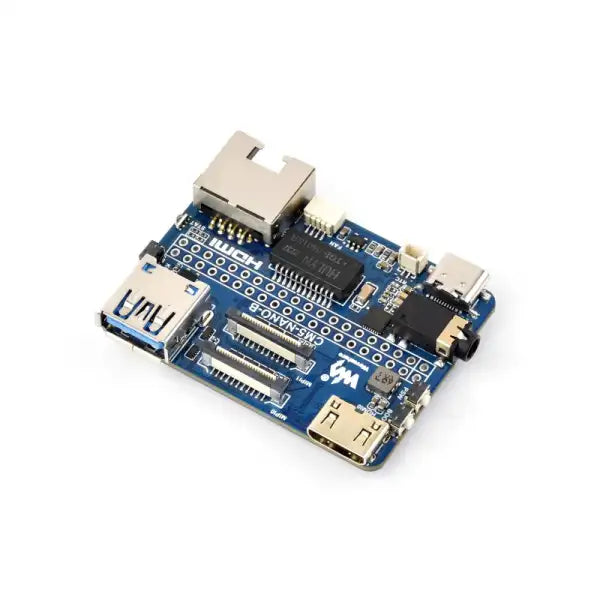

Nano Base Board (B) for Raspberry Pi Compute Module 5, Same Size As The CM5

Waveshare
Esaurito
Lek 18.56

Spedizone express

Supporto dedicato

Reso entro 14gg

Description

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products.

Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments.

Specifications
CM5 socket Suitable for all variants of Compute Module 5
Networking Gigabit Ethernet RJ45 connector
Connector Raspberry Pi 40PIN GPIO interface × 1
USB USB 3.2 Gen1 Type A port × 1
MIPI MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
Video Mini HDMI port × 1, supports 4K output
Audio USB audio 3.5mm jack
Storage TF card socket for Compute Module 5 Lite (without eMMC) variants
Power input DC 5V 5A
PCIe 16PIN PCIe connector (PCIe Gen2/3 x1)
Dimensions 55 × 41mm



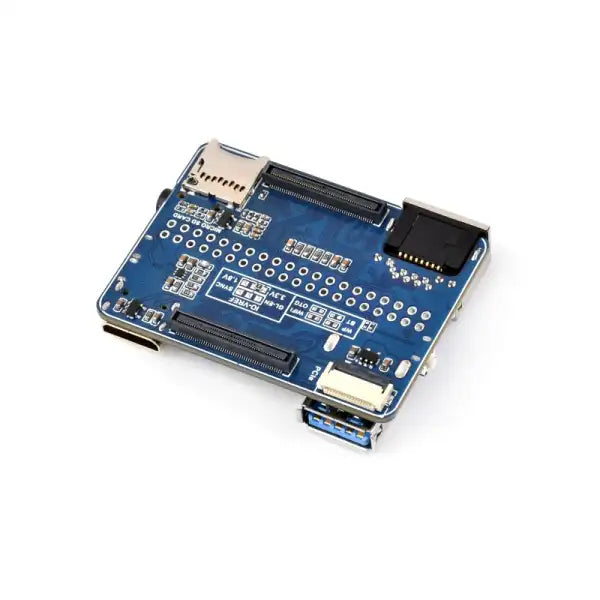

Nano Base Board (B) for Raspberry Pi Compute Module 5, onboard components

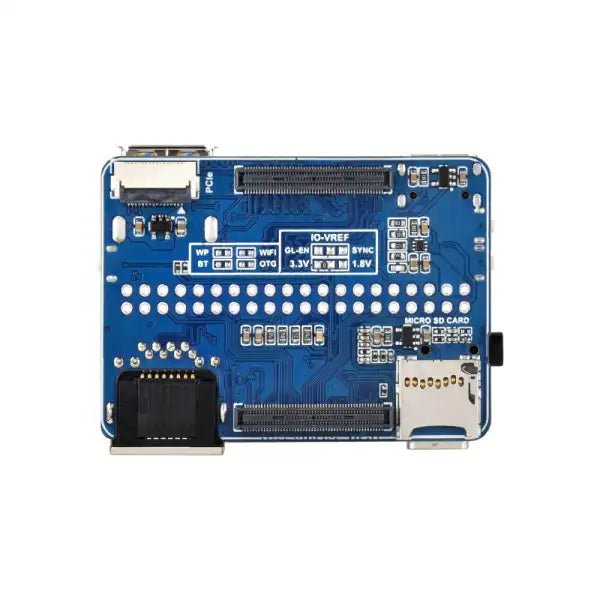

  1. CM5 socket
    Suitable for all variants of Compute Module 5
  2. PCIe interface
    16PIN PCIe connector, for connecting sorts of PI5 PCIe adapter boards
  3. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  4. Other function pins
    Supports for extended functions
  5. Mini HDMI port
    Supports 4K output
  6. BOOT button
    Press before powering on and release after powering on to enter the burning mode
  7. PSW button
    power button
  8. 3.5mm jack
    Audio output

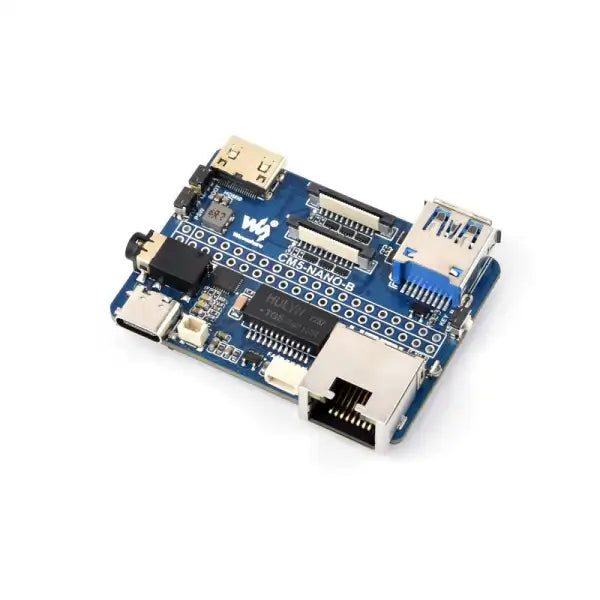

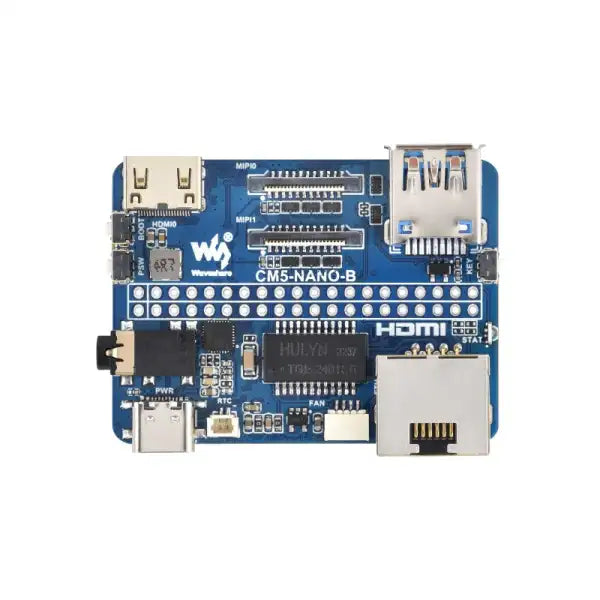

  1. Power supply / Programming
    5V power supply, or used for eMMC burning
  2. 2PIN JST-SH RTC battery header
  3. FAN header
    4PIN JST-SH PWM fan header for connecting a cooling fan
  4. RJ45 Gigabit Ethernet port
    for network access
  5. Dual-color LED indicator
    Red light: Raspberry Pi power indicator
    Green light: Raspberry Pi working status indicator
  6. User button
    connected to GPIO21
  7. USB port
    USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices
  8. Dual MIPI interfaces
    for connecting to DSI displays or CSI cameras
  9. 40PIN GPIO interface
    suitable for connecting to various HAT modules
