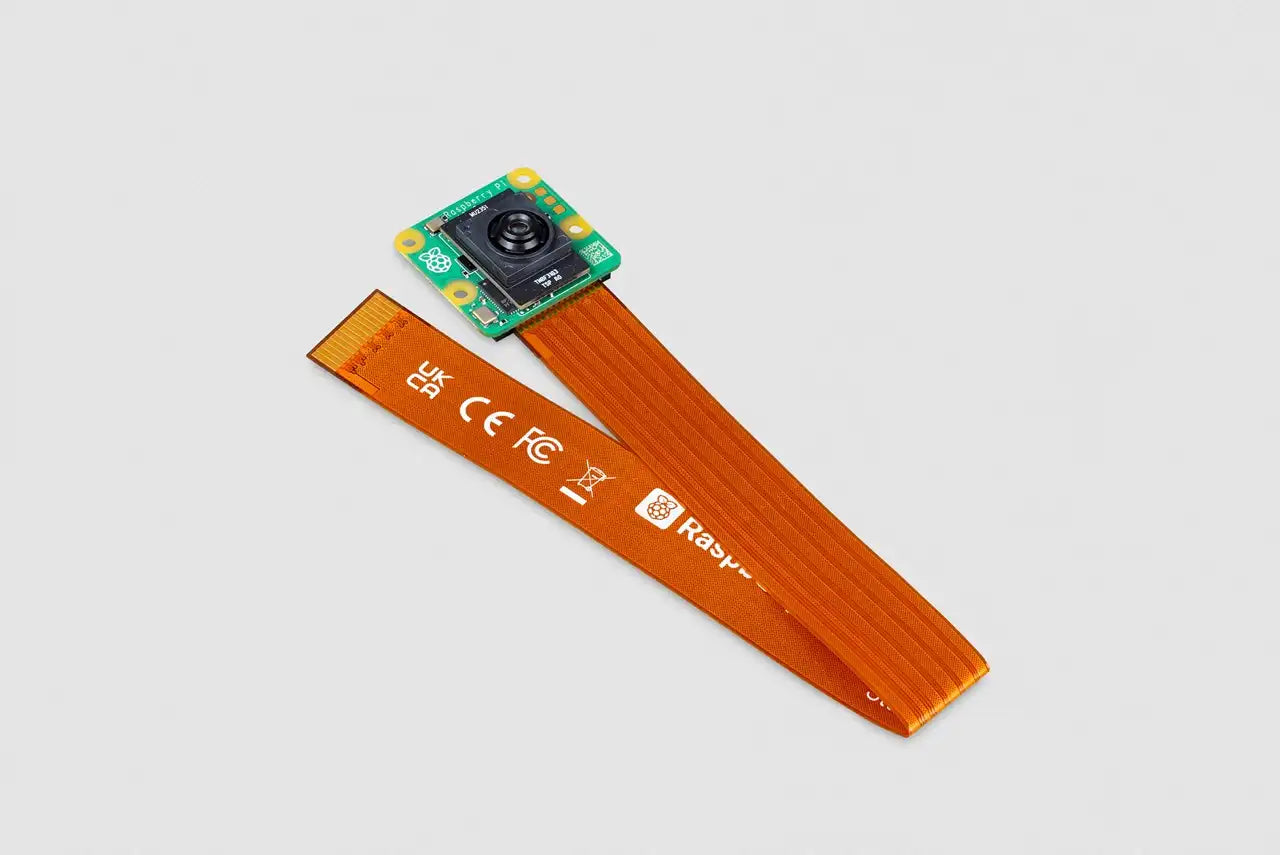

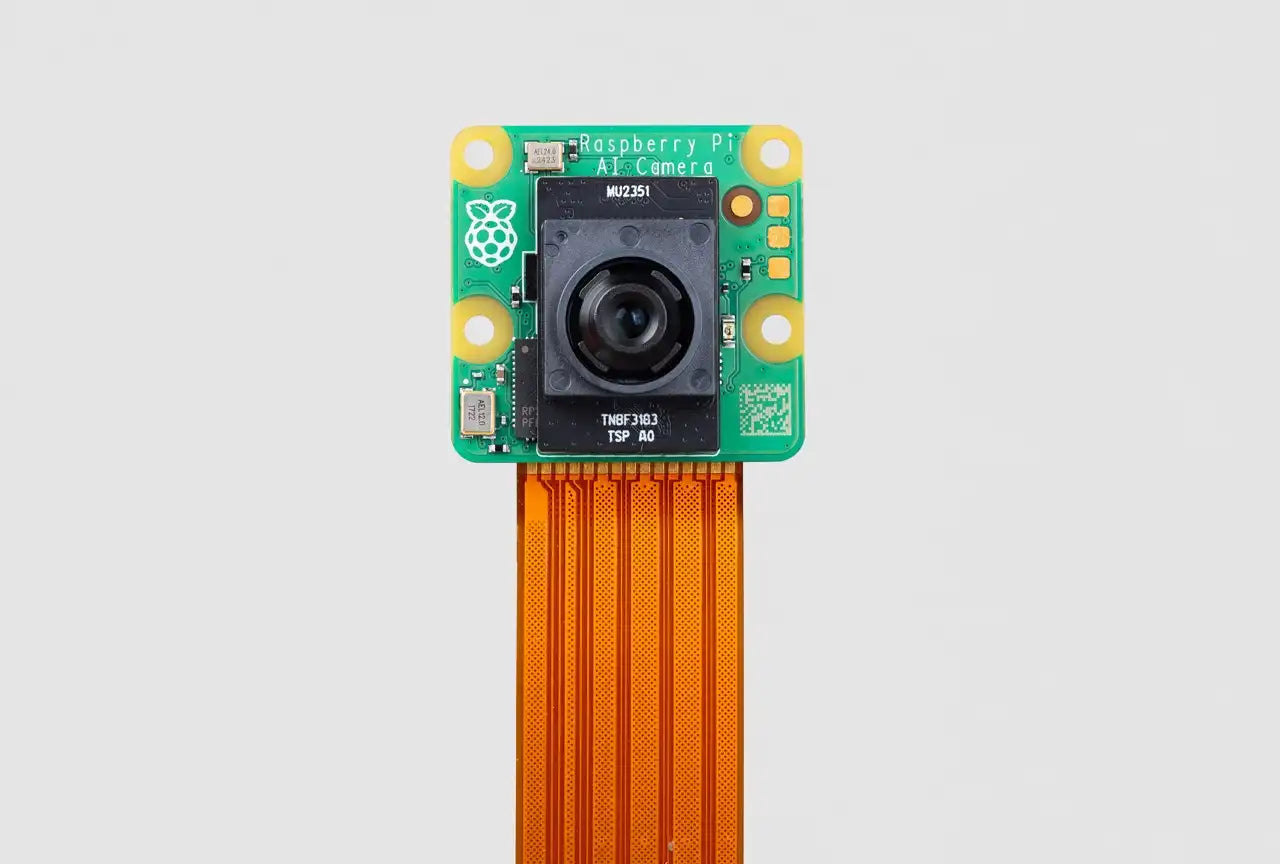

Raspberry Pi AI Camera

Compatible with all Raspberry Pi computers, the Raspberry Pi AI Camera takes advantage of Sony’s IMX500 Intelligent Vision Sensor to help you create impressive vision AI applications and neural network models using the on-module AI processor.

The IMX500’s tight integration with Raspberry Pi’s camera software stack allows users to deploy their own neural network models with minimal effort. To get started, we’ve developed a guide to get you running either a pre-packaged or custom-made neural network model on the camera.

Specification

12.3 MP Sony IMX500 Intelligent Vision Sensor with a powerful neural network accelerator

Framerates:

• 2×2 binned: 2028×1520 10-bit 30fps
• Full resolution: 4056×3040 10-bit 10fps

7.857 mm sensor size

1.55 μm × 1.55 μm pixel size

78.3 (±3) degree FoV with manual/mechanical adjustable focus

F1.79 focal ratio

25 × 24 × 11.9 mm module dimensions

Integrated RP2040 for neural network firmware management

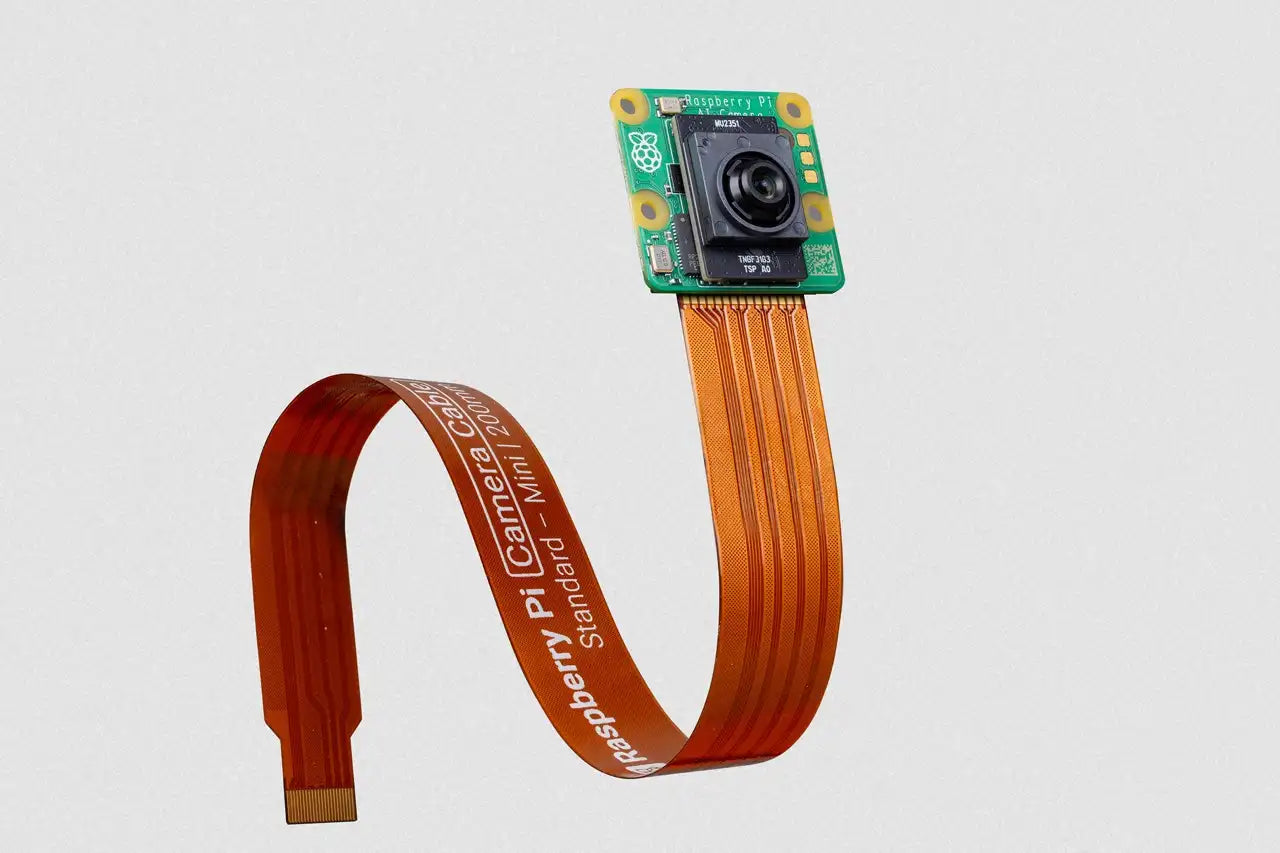

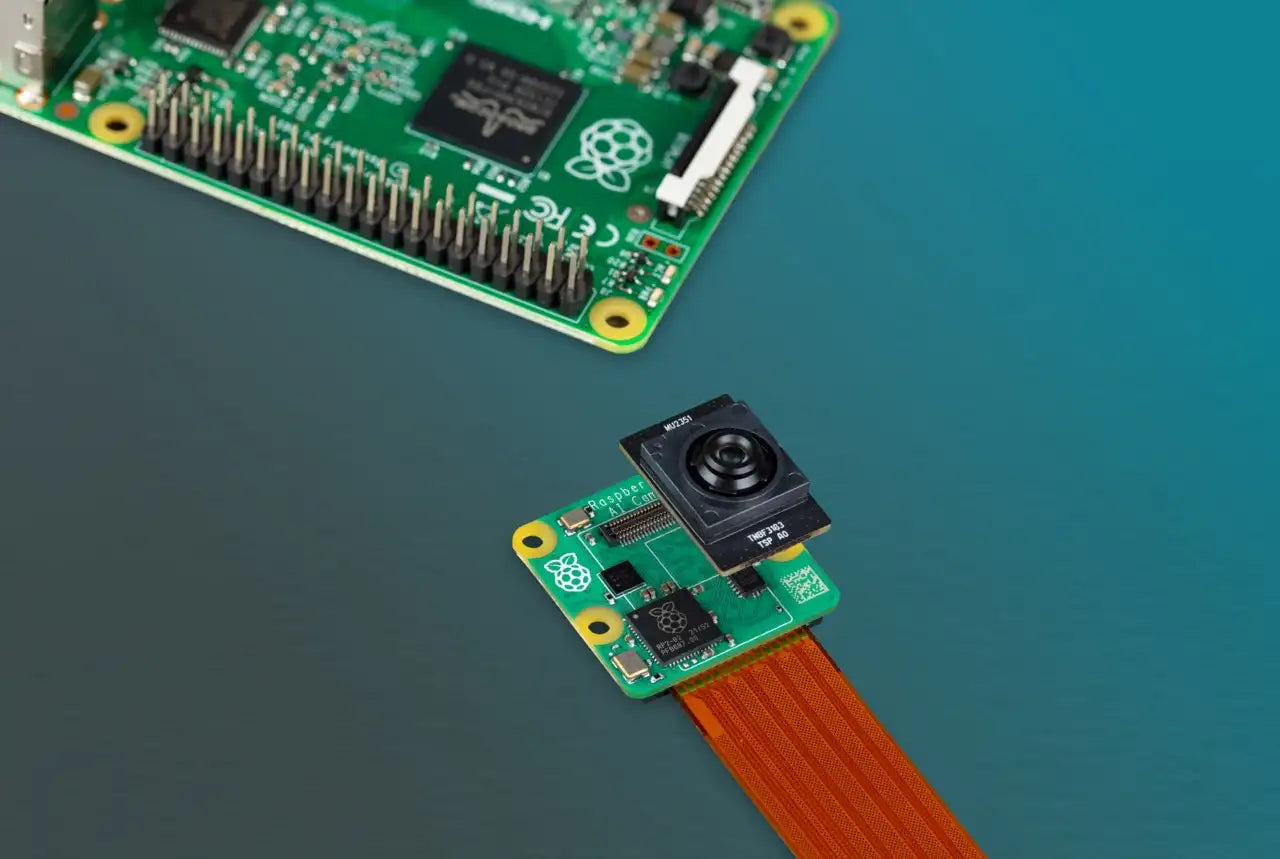

Works with all Raspberry Pi models, using our standard camera connector cable

Documents

• Raspberry Pi AI Camera product brief
• Getting started with Raspberry Pi AI Camera

Compliance

Raspberry Pi AI Camera has undergone extensive compliance testing and meets a number of regional and international standards.

View and download relevant certificates and conformity documents.

Obsolescence

Raspberry Pi AI Camera will remain in production until at least January 2028
