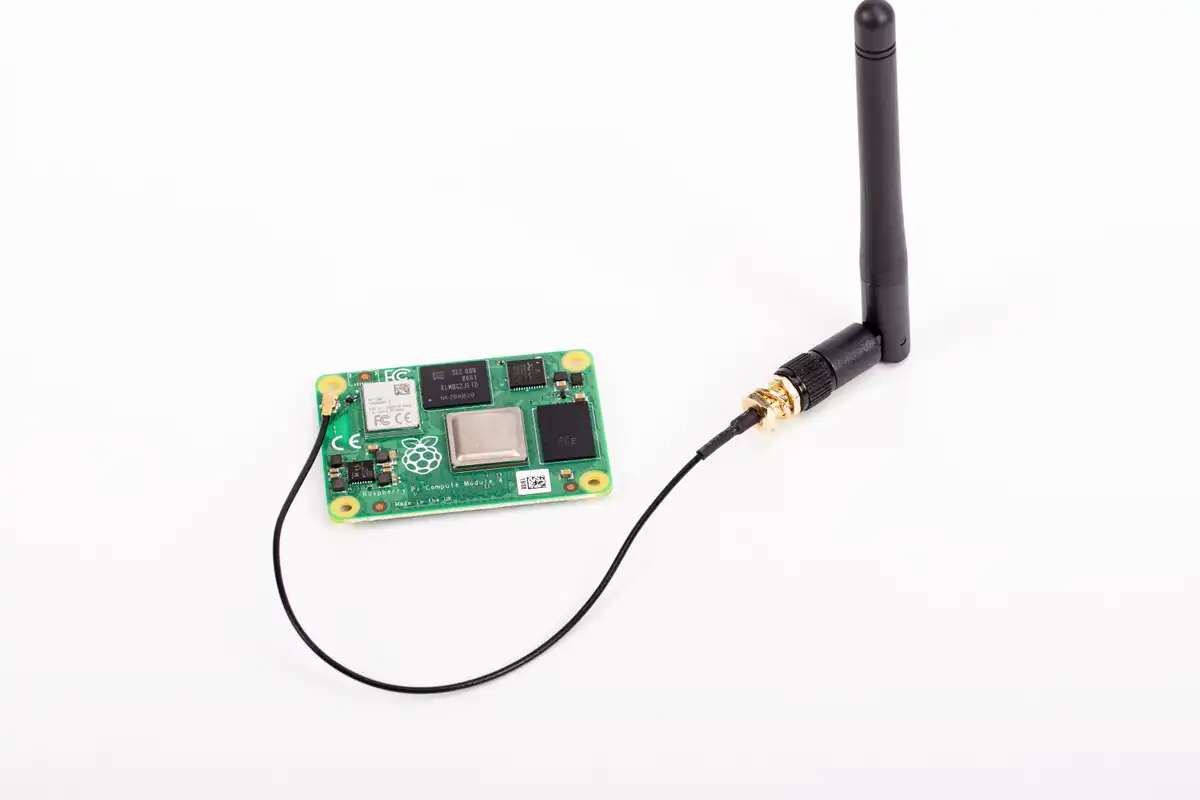

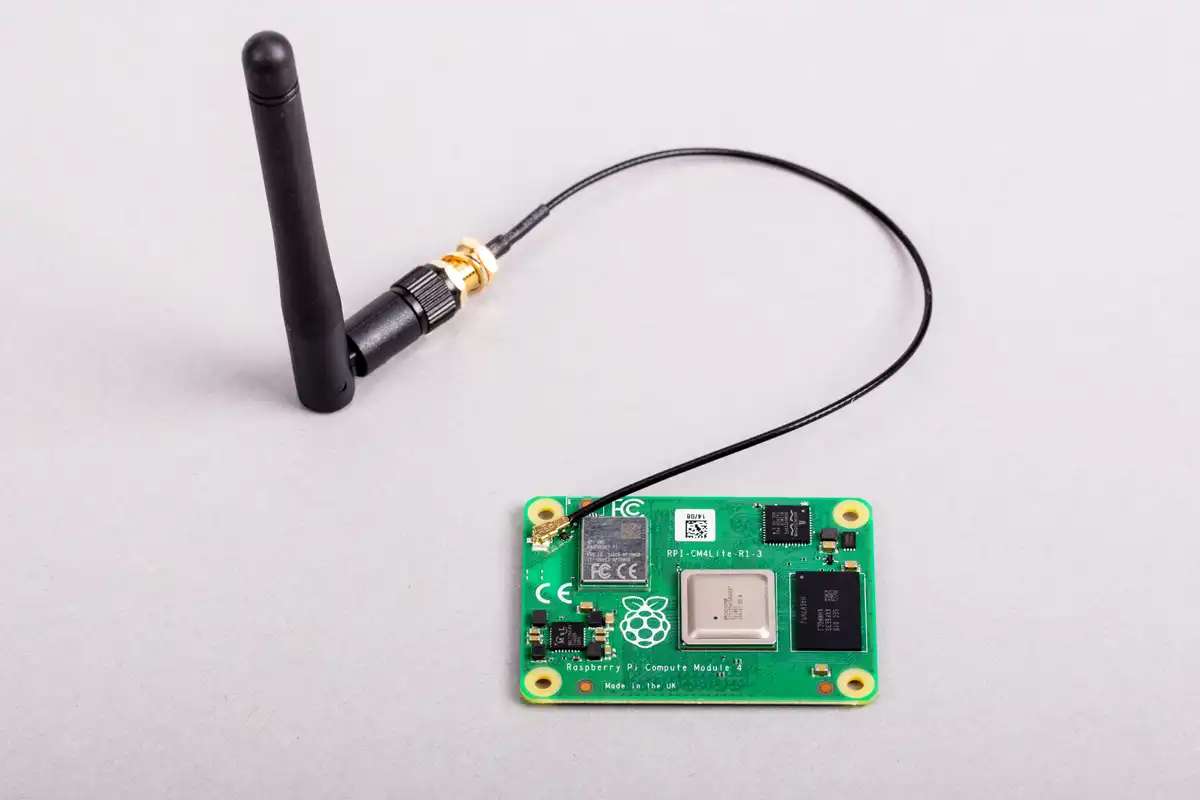

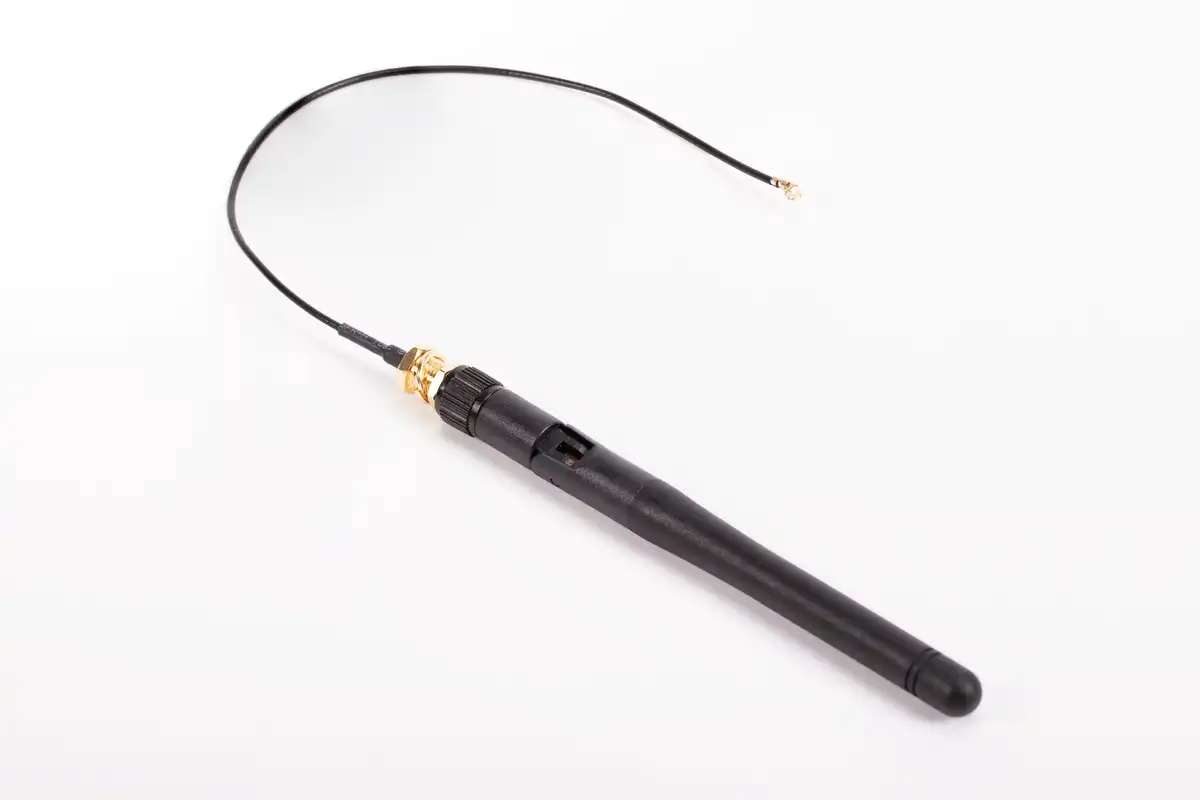

Raspberry Pi Antenna Kit
Raspberry Pi Antenna Kit
Raspberry Pi Antenna Kit
Raspberry Pi Antenna Kit
Raspberry Pi Antenna Kit
Raspberry Pi Antenna Kit

Nota: Le immagini, il colore e l’aspetto effettivi degli articoli potrebbero differire leggermente dalle fotografie.
SKU: RPI-CM4-ANTENNA
(0)

Raspberry Pi Antenna Kit

Raspberry Pi
Esaurito
Lek 5.43

Spedizone express

Supporto dedicato

Reso entro 14gg

Certified for use with Raspberry Pi Compute Module 4 and 5

Description

Certified for use with Raspberry Pi Compute Module 4.

Antenna specification

  • Frequency range: 2400-2500/5100-5800 MHz
  • Bandwidth: 100–700MHz
  • VSWR: ≤ 2.0
  • Gain: 2 dBi
  • Impedance: 50 ohm
  • Polarisation: Vertical
  • Radiation: Omnidirectional
  • Maximum power: 10W
  • Antenna dimensions: 108 mm × 10 mm

Documents

Raspberry Pi Antenna Kit product brief

Compliance

The Raspberry Pi Antenna Kit has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at pip.raspberrypi.com.

Obsolescence Statement

Raspberry Pi Antenna Kit will remain in production until at least January 2028
