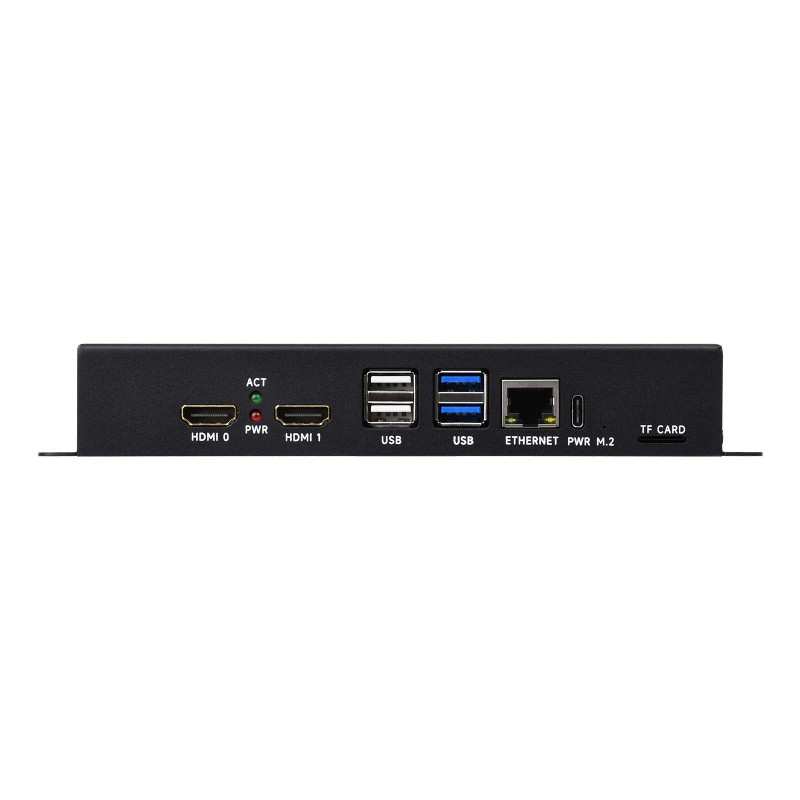

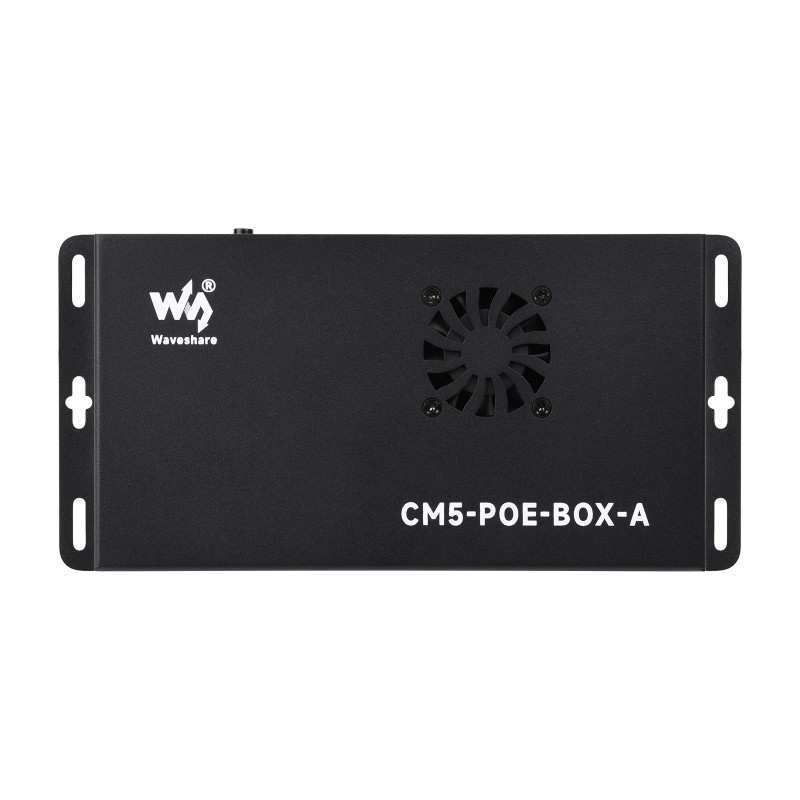

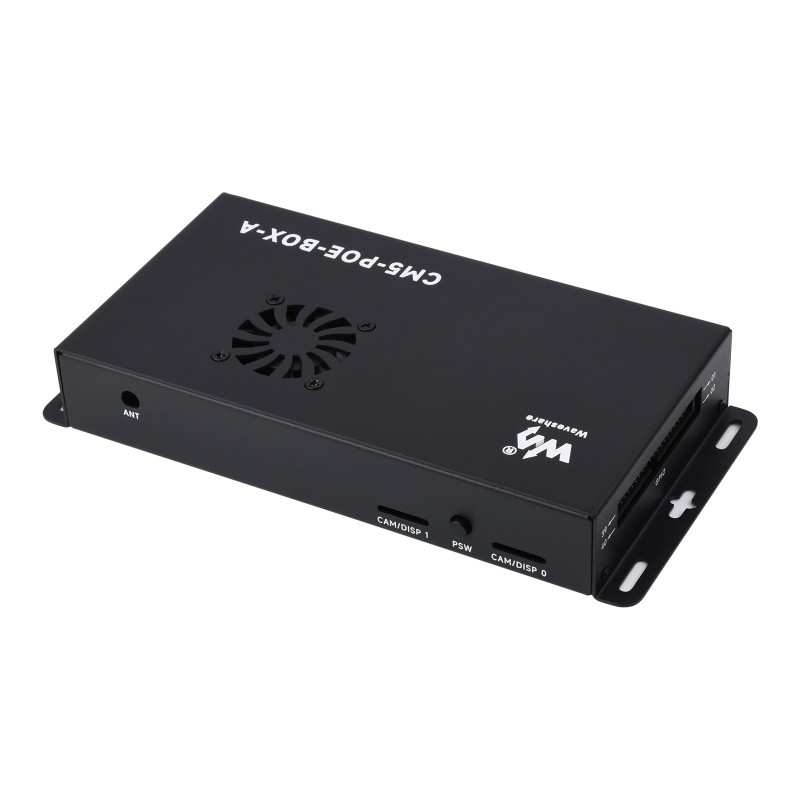

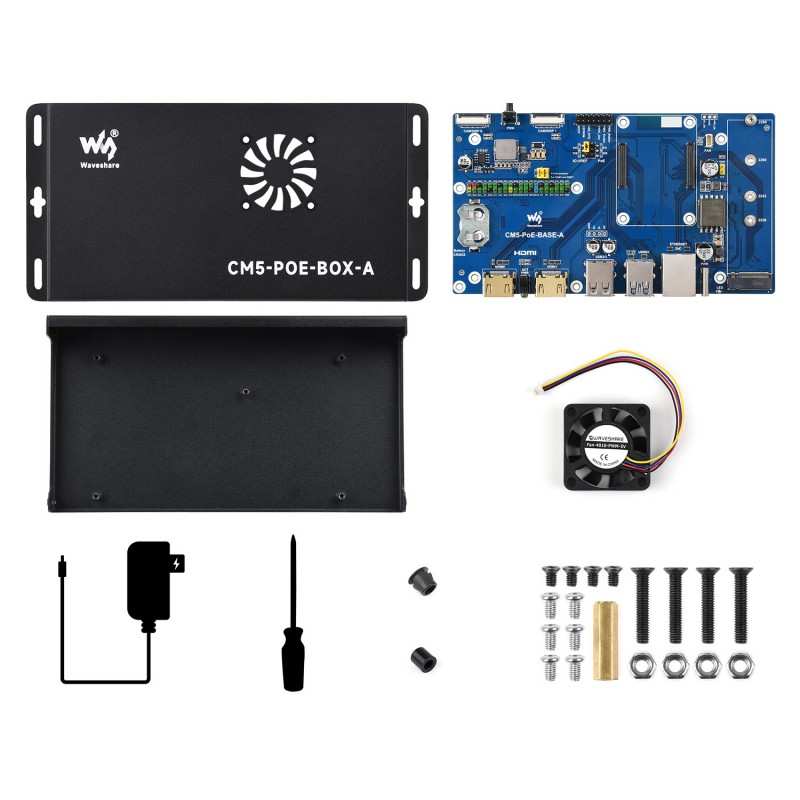

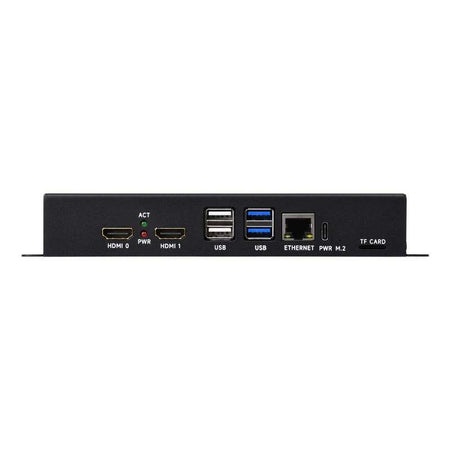

Raspberry Pi Compute Module 5 IO Board With PoE Feature, For All Variants Of CM5

Description

Specifications
CM5 socket suitable for all variants of Compute Module 5
Networking Gigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A)

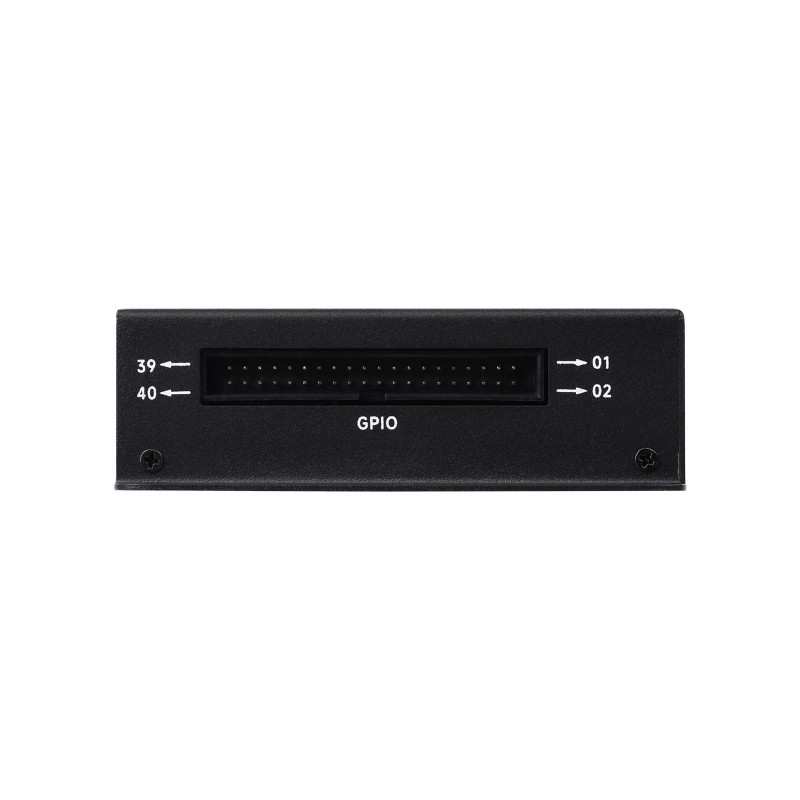

Connector Raspberry Pi 40PIN GPIO header
USB USB 3.2 Gen1 × 2
USB 2.0 × 2
MIPI 4-lane MIPI interface × 2 (22pin 0.5mm FPC connector)
Video HDMI port × 2, supports 4K output
RTC CR / ML2032 battery holder
Storage TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan connector 5V, JST-SH PWM 4PIN connector
NVMe PCIe Gen2/3 × 1
Power input 5V 5A
Dimensions the base board: 160 × 90 (mm)
with metal case: 200.5 × 97.5 × 31.0 (mm)
