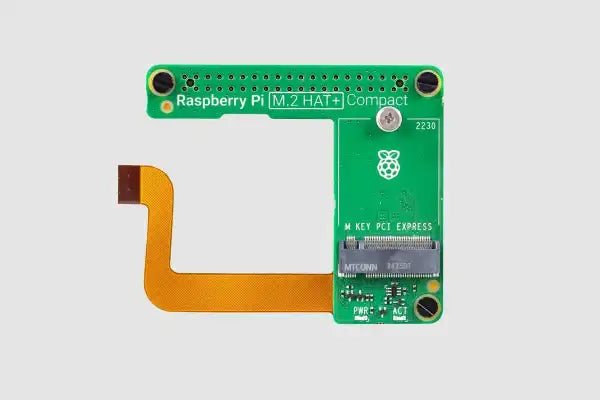

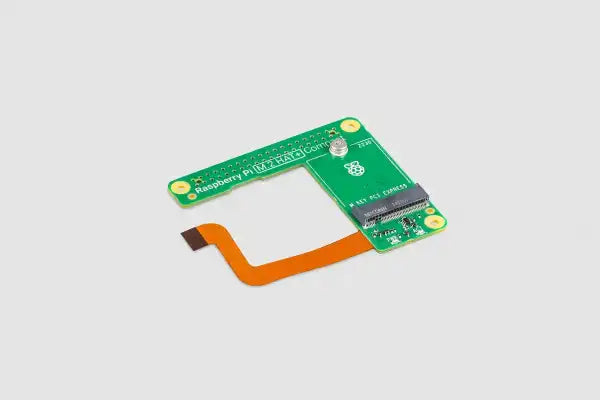

Raspberry Pi M.2 HAT+ Compact

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5 mmpitch FPC connector; the M.2 HAT+ M Key, in both its standard and compact variants, is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 (standard and compact variants) and 2242 (standard variant only) form factors. It is capable of supplying up to 3A to connected M.2 devices.

The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.

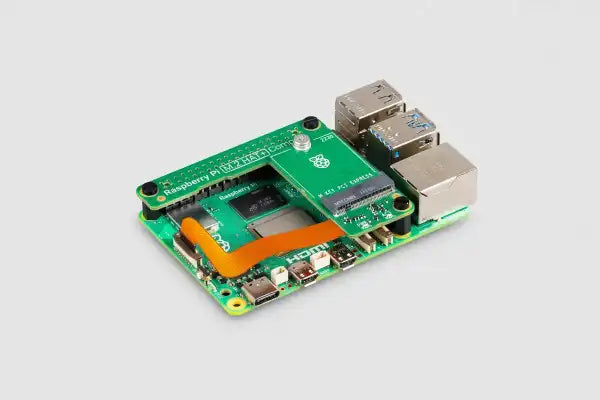

The Raspberry Pi M.2 HAT+ Compact is designed for use with the Raspberry Pi Case for Raspberry Pi 5. The Compact form factor enables you to connect M.2 M key peripherals with the 2230 form factor to Raspberry Pi 5, while allowing space for the case’s integrated cooling fan.

Specifications

Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)

Supports devices that use the M.2 M key edge connector

Supports form factors:

• M.2 HAT+ Standard: 2230, 2242
• M.2 HAT+ Compact: 2230 only

Capable of supplying up to 3A to connected M.2 devices

Includes power and activity LEDs

Conforms to the Raspberry Pi HAT+ specification

Supplied with ribbon cable, 16mm stacking header (M.2 HAT+ only), threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
