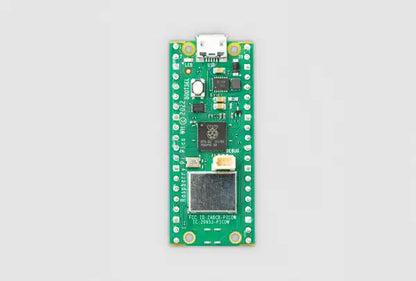

Raspberry Pi Pico WH

Description

Specifications:

• 21 mm 51 mm form factor
• RP2040 microcontroller chip designed by Raspberry Pi in the UK
• Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
• 264kB on-chip SRAM
• 2MB on-board QSPI flash
• 2.4GHz 802.11n wireless LAN (Raspberry Pi Pico W and WH only)
• Bluetooth 5.2 (Raspberry Pi Pico W and WH only)
• 26 multifunction GPIO pins, including 3 analogue inputs
• 2 UART, 2 SPI controllers, 2 I2C controllers, 16 PWM channels
• 1 USB 1.1 controller and PHY, with host and device support
• 8 Programmable I/O (PIO) state machines for custom peripheral support
• Supported input voltage 1.8–5.5V DC
• Operating temperature -20°C to +85°C (Raspberry Pi Pico and Pico H); -20°C to +70°C (Raspberry Pi Pico W and Pico WH)
• Castellated module allows soldering direct to carrier boards (Raspberry Pi Pico and Pico W only)
• Drag-and-drop programming using mass storage over USB
• Low-power sleep and dormant modes
• Accurate on-chip clock
• Temperature sensor
• Accelerated integer and floating-point libraries on-chip

Documents:

• Raspberry Pi Pico product brief
• Raspberry Pi Pico W product brief
• Raspberry Pi Pico datasheet
• Raspberry Pi Pico W datasheet
• Getting started with Raspberry Pi Pico: C/C++ development
• Raspberry Pi Pico C/C++ SDK
• API-level Doxygen documentation for the Raspberry Pi Pico C/C++ SDK
• Raspberry Pi Pico Python SDK
• Connecting to the internet with Raspberry Pi Pico W
• Raspberry Pi RP2040 datasheet
• Hardware design with RP2040
• Raspberry Pi Pico design files
• Raspberry Pi Pico W design files (Cadence Allegro)
• Raspberry Pi Pico STEP file
• Raspberry Pi Pico W STEP file
• 3-pin debug connector
